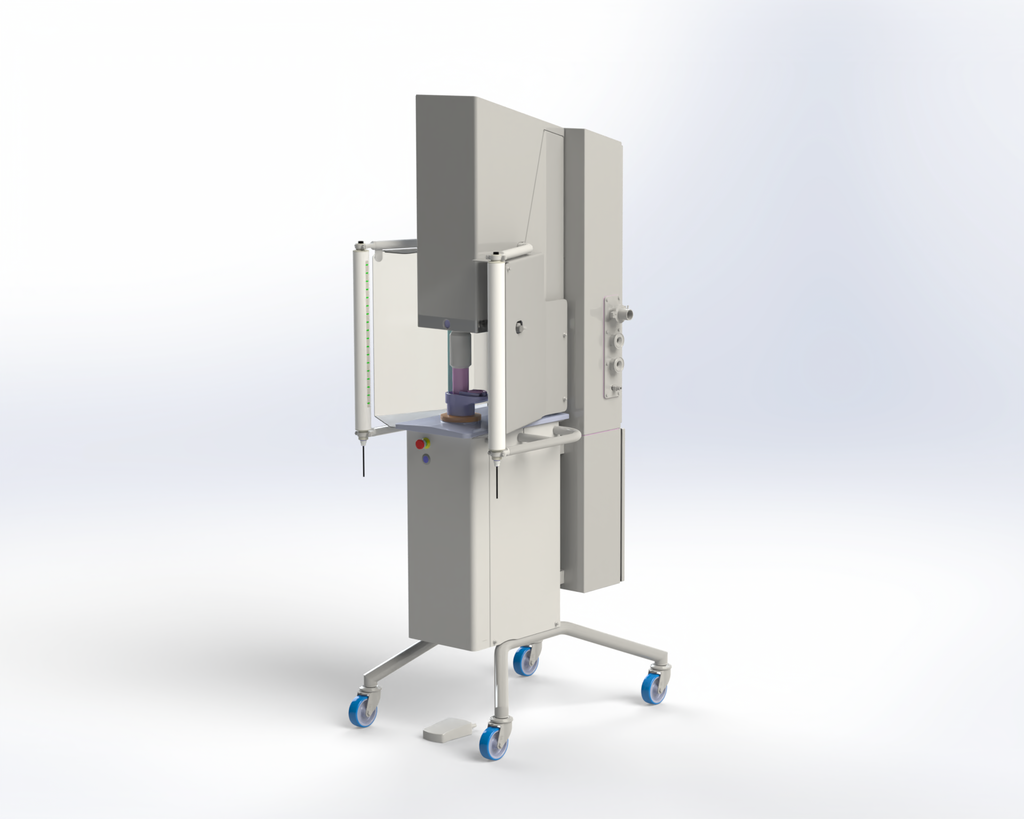

Hygentile Craft Can Filler 1 (HCCF-1)

The HCCF-1 is an easy-to-operate plug & play system for filling and seaming cans under counterpressure in an oxygen-free room fullfilling high hygienic requirements. It can be connected directly to the product source (e.g. beer brewing tank or keg). Electrical power (200-240V, 10A), compressed air and an inert gas source (e.g. CO2, N2) are sufficient to operate the HCCF 1.

In addition to carbonated beverages, still beverages (non-carbonated, e.g. water, fruit juices, wine, iced tea) can also be filled under nitrogen pressure. The can is stabilized by the internal can pressure and therefore feels hard. When the can is opened, the familiar slight hissing sound can be heard.

The machine is designed for an annual production volume of up to 480,000 cans in single-shift operation.

Our product was developed and assembled in Switzerland. The highest standards of quality, user-friendliness and hygienic design are met.

Features of HCCF-1:
- Counter pressure filler and seamer
- Intended for non-carbonated and carbonated beverages (no need of liquid nitrogen drip feeder for non-carbonated beverages)
- CO₂ or N₂ inert gas atmosphere
- Oxygen absorption selectable below 10 ppb (parts per billion)
- CIP (clean-in-place): Automatic machine rinsing similar to a dish washer machine
- Manual can and lid feed
- Manual removal of full cans
- Production capacity: 250 - 720 cans per hour (cph, cans per hour)
- Supported can formats: All common cans from 150ml to 568ml (standard, sleek, slim)
- Can format changeover with the same lid format possible within seconds during operation
- Can format changeover with lid format change possible within minutes during operation
- Can end formats 200CDL/B64 and 202CDL/B64
- External machine dimensions: width: 670mm, depth: 960mm, height: 1960mm
- Machine weight: approx. 250kg
- Ex Works (EXW)
